Description

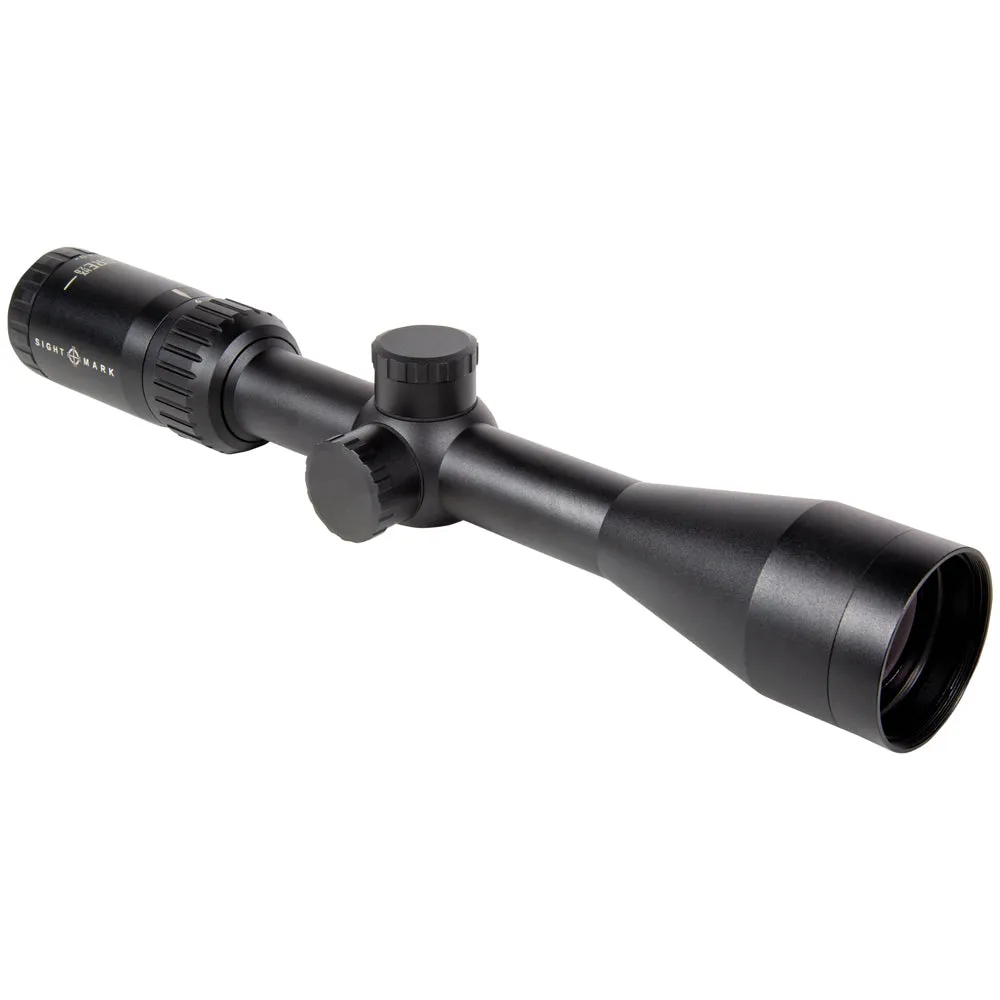

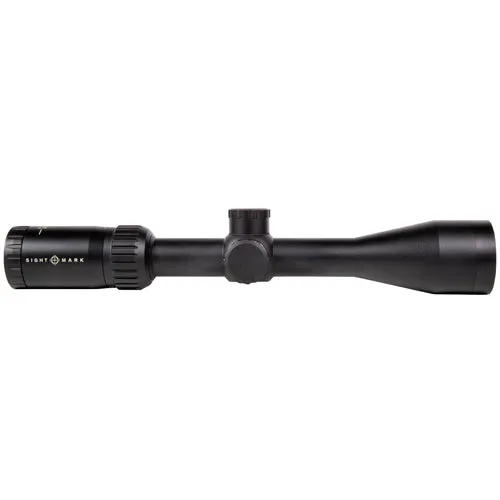

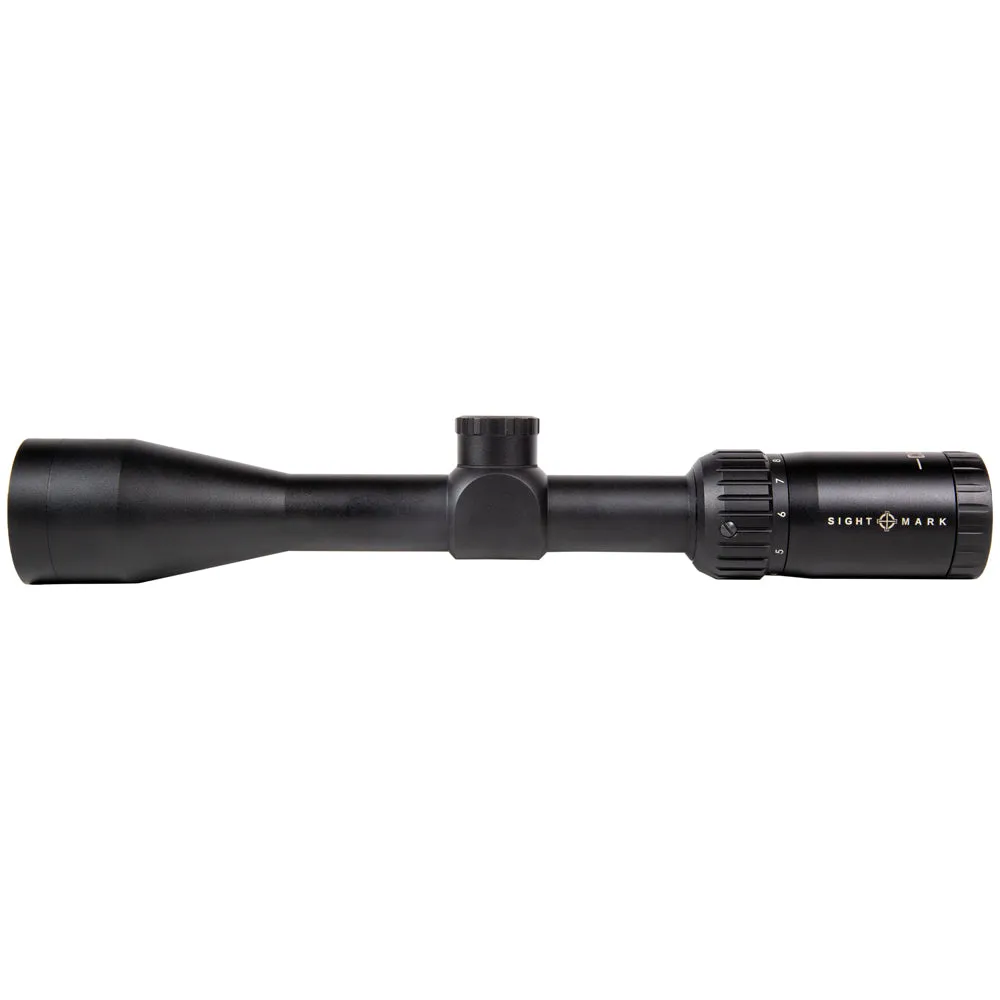

The new Core 2.0 HX Series of riflescopes from Sightmark is an improvement on the previous Core, offering upgraded glass, finer click adjustments, and improved low light performance. Designed with versatility in mind, the Core 2.0 HX is available in either the Duplex or Hunter Dot Reticles to offer hunters of all skill levels the simplicity or sophistication they need to achieve that perfect shot.
With its solidly built housing made of aircraft grade aluminum, the Core 2.0 HX promises to be a dependable hunting tool in any environment. This robust housing allows the Core 2.0 HX to be both waterproof and shockproof, while a nitrogen filled tube prevents fog and high quality glass enables a crystal clear image.
Included in Package
- Scope Rings
- Lens Flip-Caps
- Lens Cloth
Product Downloads
Features
- Single-Piece Tube
- Aircraft Grade Aluminum
- Hard Anodized Finish

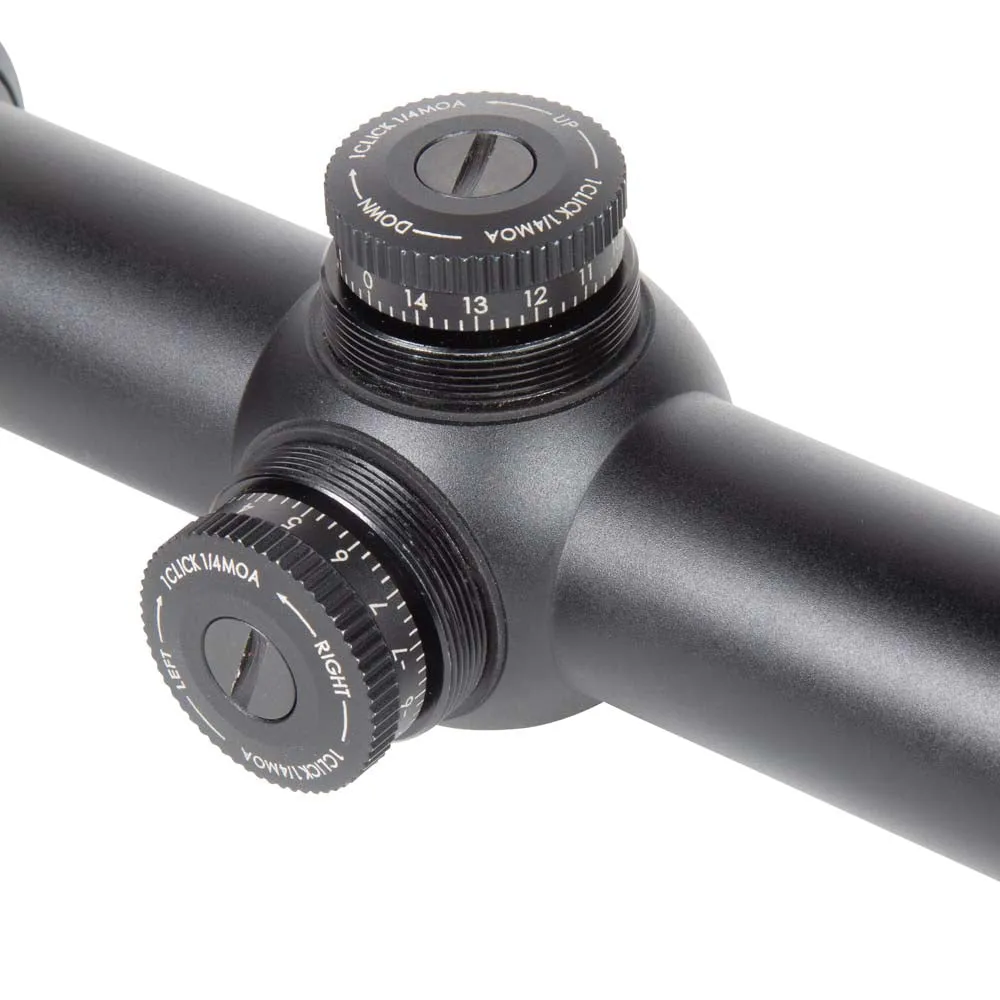

- Resettable, Capped Turrets
- Shockproof, Fogproof, Waterproof
- Fully Multi-Coated Optics

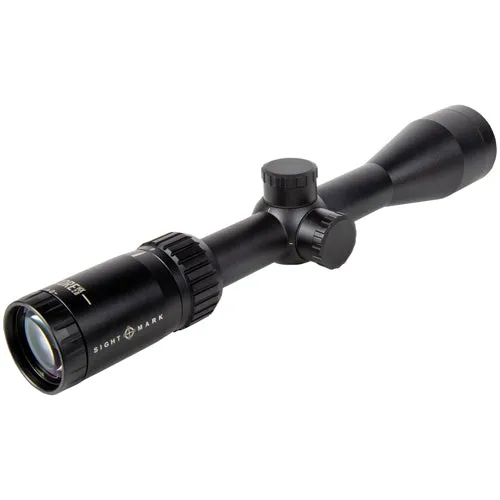

- Fast-Focus Eyepiece
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
Reticle Type | Duplex |
Reticle | Wire |
Reticle Color | NA |
Illuminated (yes/no) | NA |
Reticle Brightness Settings | NA |
Finish/Color | Matte Black |
Magnification (x) | 3-9x |
Objective Lens Diameter (mm) | 40 |
Eyepiece Diameter (mm) | 41 |
Exit Pupil Diameter (mm) | 14.1 - 5.6 |
Eye Relief (in/mm) | 3.7 / 94.0 |
Field of View (m @100m) | 10.06 - 3.46 |
Field of View (ft @100yd) | 33.00 - 11.35 |
Diopter Adjustment ( /-) | ' 2 / -2 |
Tube Diameter (in/mm) | 1 / 25.4 |
Parallax Settings (yds) | 100 |
Windage Adjustment Range (MOA) | 90 |
Elevation Adjustment Range (MOA) | 90 |
Windage & Elevation Lock (yes/no) | No |
Adjustment Value (one click =) | 1/4 MOA |
Maximum Recoil (G's) | 1000 |
Sunshade (yes/no) | No |
Nitrogen Filled (yes/no) | Yes |
Shockproof (yes/no) | Yes |
Fog Proof (yes/no) | Yes |
Focal Plane | 2nd |
IP Standard (water rating) | IPX7 - waterproof and dust proof |
Body Material | Aluminum 6061-T6 |
Lens Material/Type | Glass |
Lens Coatings | Fully Multi-Coated |
Battery Type | NA |
Battery Life (hours) | NA |
Operating Temperature (°F/°C) | '-4° to 149° / -20° to 65° |
Length (in/mm) | 12.25 / 311.2 |
Width (in/mm) | 1.85 / 47.2 |
Height (in/mm) | 1.85 / 47.2 |
Weight w/flip caps (oz) | 16.4 |
